Medical RFID
Cabinets M2/XX

M2/2 Active Cabinet

Cabinet measurements: 745 x 650 x 440 mm
Material: wood, coated white
Front: wooden frame with transparent security glas panels

TECHNICAL COMPONENTS

  • Industrial-PC
  • MARS 6 AT HF RFID Reader (Mode 2 and Mode 3)
  • AT-3D-MUX HF RFID Antenna
  • Software CrossTalk-Agent preinstalled on PC

FUNCTIONALITY

  • Secure reading of up to 2000 HF RFID-Tags in 3D within 15 sec.
  • Automatic stocktake after closing of front door/drawer within a freely set time interval
  • Access control through RFID transponder/keyfob
  • www data transfer via CrossTalk-Agent SW from cabinet to CrossTalk Server and SAP B1
  • Operating status signalled through LEDs
  • Antiseptic handles

One M2/2 Active Cabinet can be combined with up to 4 M2/2 Passive Cabinets.

M2/2 Passive Cabinet

Cabinet measurements: 745 x 650 x 440 mm
Material: wood, coated white
Front: wooden frame with transparent security glas panels

TECHNICAL COMPONENTS

  • AT-3D-MUX HF RFID Antenna

FUNCTIONALITY

  • Secure reading of up to 2000 HF RFID-Tags in 3D within 15 sec.
  • Automatic stocktake after closing of front door/drawer within a freely set time interval
  • Access control through RFID transponder/keyfob
  • www data transfer via CrossTalk-Agent SW from cabinet to CrossTalk Server and SAP B1
  • Operating status signalled through LEDs
  • Antiseptic handles

The M2/2 Passive Cabinet can be bought
only in combination with a M2/2 Active Cabinet.

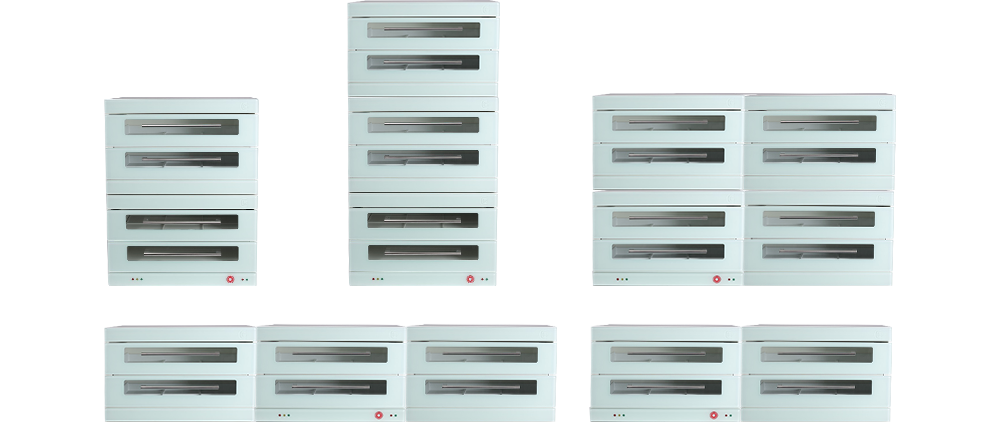

Possible Configurations

M2/2 Active Cabinet
M2/2 Passive Cabinet

M2/B4 Cool Cabinets

AVAILABLE FORMATS

  • M2/B4 Active and Passive
  • Capacity 544/520 Liter

FACTS

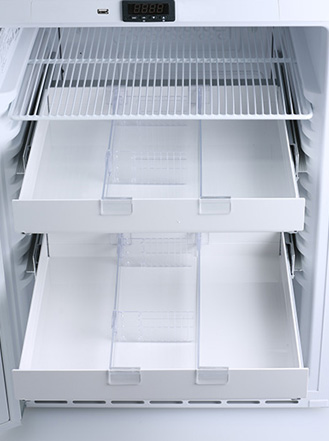

  • 4 Flexible and configurable drawers for approx. 200 blood bags
  • One M2/B4 Active can be combined with one M2/B4 Passive Cool Cabinet
  • Cool Cabinet is a certified refrigerator for blood reserves according to DIN 58371
  • Cool Cabinets can be easily integrated into CCS M2 networks
  • Incl. barcode/UID capture for stock surveillance and automated runtime control/alert for blood bags in external transit

TECHNICAL COMPONENTS

  • Industrial-PC
  • MARS 6 AT HF RFID Reader (Mode 2 and Mode 3)
  • 2 AT-3D-MUX HF RFID Antennas
  • Software CrossTalk-Agent preinstalled on PC

FUNCTIONALITY

  • Secure reading of approx. 200 HF RFID-Tags in 3D within 15 sec.
  • Automatic stocktake after closing of front door/drawer within a freely set time interval
  • Access control through RFID transponder/keyfob
  • www data transfer via CrossTalk-Agent SW from cabinet to CrossTalk Server and SAP B1
  • Operating status signalled through LEDs

Pricelist

Price per Unit (in Euros)

Cabinet M2/2 Active

starting from 5.700,–

Cabinet M2/2 Passive

starting from 2.800,–

Cool Cabinet M2/B4 Active

starting from 7.600,–

Cool Cabinet M2/B4 Passive

starting from 4.900,–
