Medical RFID
Cabinets M2/XX

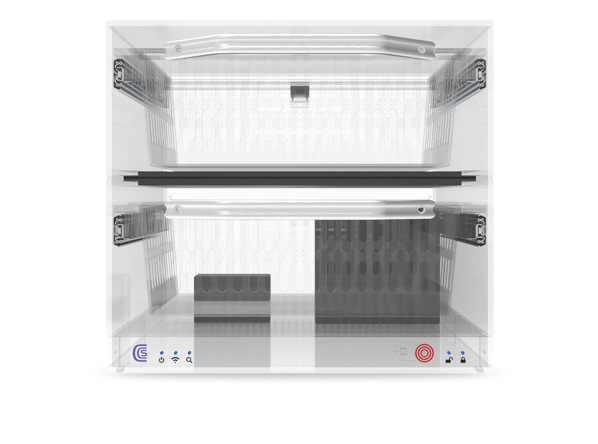

M2/2 Active Cabinet

TECHNICAL COMPONENTS

  • Module Corpus: Polycarbonate transparent, wipe disinfectable
  • Dimension: 632x606x510 mm
  • 2 drawer shelf system for ISO-sized removable baskets 600x400x200 (100) mm
  • ISO 18000-3 Mode 3 MARS HF-RFID Reader 13,56 MHz
  • 1 x 3D-MUX antenna ISO-sized
  • Industrial PC with M2 Agent software preinstalled incl. WLAN module
  • Antiseptic handles

FUNCTIONALITY

  • Secure reading of 200 RFID-Tags per basket in 3D within 5 sec.
  • Automatic stocktake after closing of drawers within freely set time interval
  • www data transfer via M2 Agent software from cabinet via CCS M2 server to SAP B1 HANA Cloud
  • Operating status of cabinet signalled by LEDs
  • RFID access control for electromagnetic lock
  • One Active Cabinet Module can be combined with up to 2 Passive Cabinet Modules

One M2/2 Active Cabinet can be combined with up to 4 M2/2 Passive Cabinets.

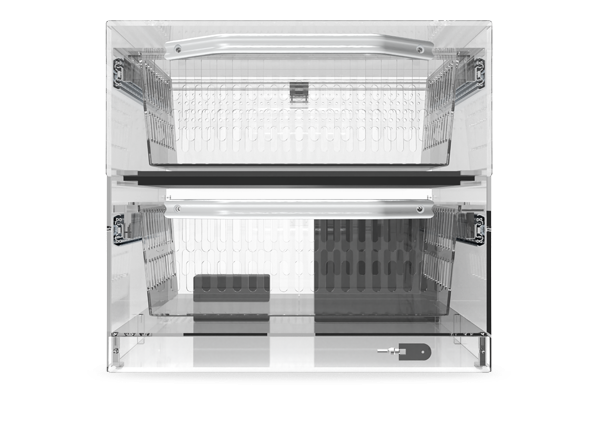

M2/2 Passive Cabinet

TECHNICAL COMPONENTS

  • Module Corpus: Polycarbonate transparent, wipe disinfectable
  • Dimension: 632x606x510 mm
  • 2 drawer shelf system for ISO-sized removable baskets 600x400x200 (100) mm
  • 1 x 3D-MUX antenna ISO-sized
  • Antiseptic handles

FUNCTIONALITY

  • Secure reading of 200 RFID-Tags per basket in 3D within 5 sec.
  • Automatic stocktake after closing of drawers within freely set time interval
  • www data transfer via M2 Agent software from cabinet via CCS M2 server to SAP B1 HANA Cloud
  • Operating status of cabinet signalled by LEDs
  • RFID access control for electromagnetic lock
  • Passive Cabinet Modules operate only in junction with an Active Cabinet Module

The M2/2 Passive Cabinet can be bought
only in combination with a M2/2 Active Cabinet.

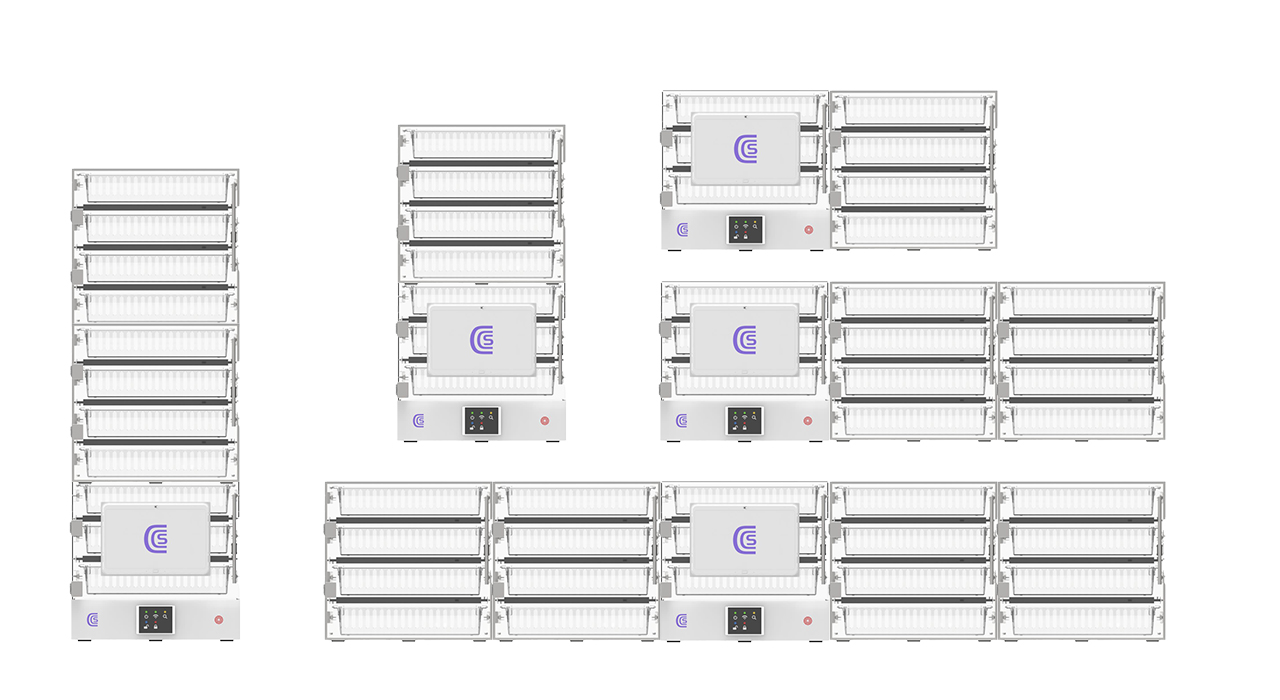

Possible Configurations

M2/2 Active Cabinet
M2/2 Passive Cabinet

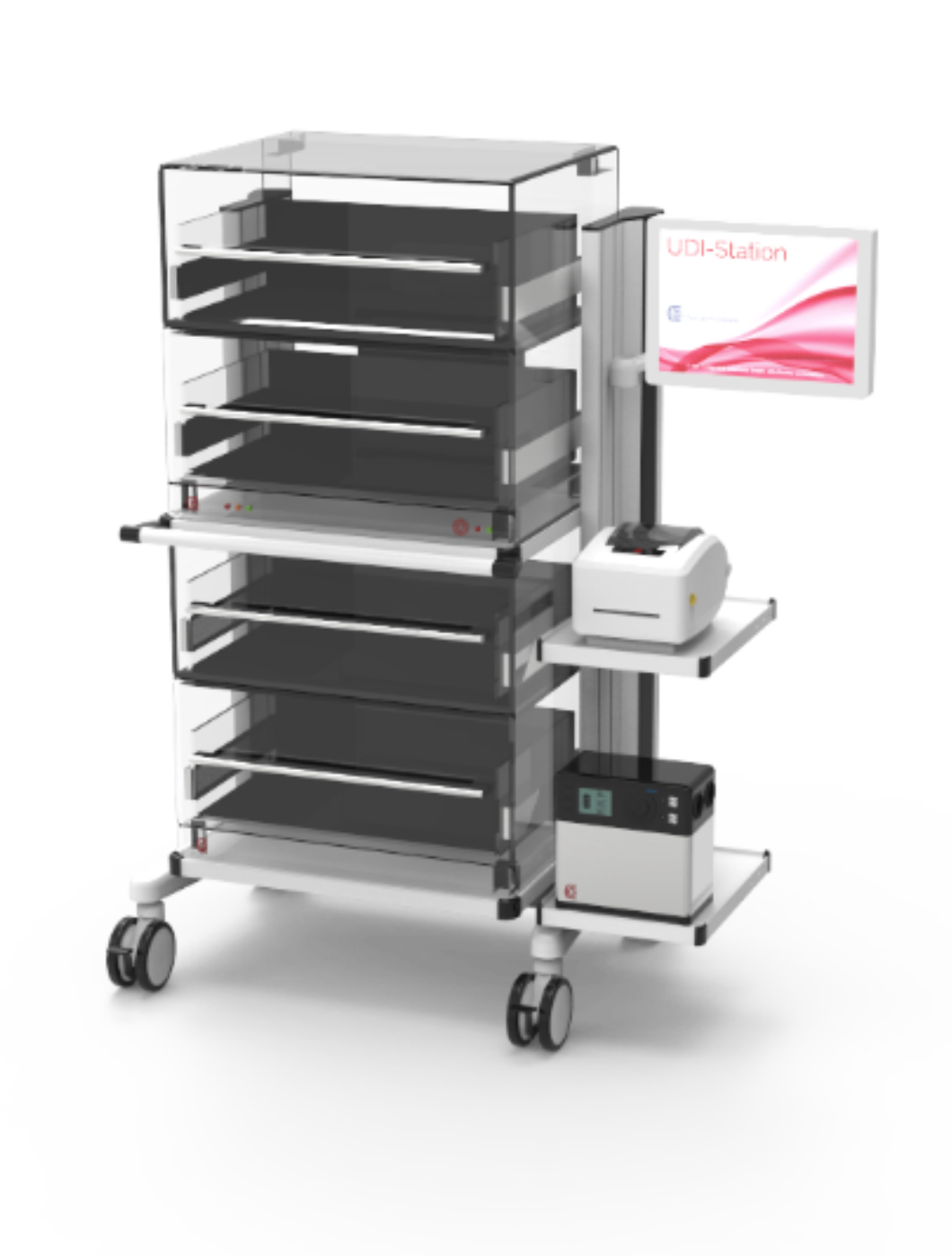

Cabinet Modules available on cart with Touch-PC and rechargeable battery power supply (12h operating time)

Price list on request
