Medical RFID

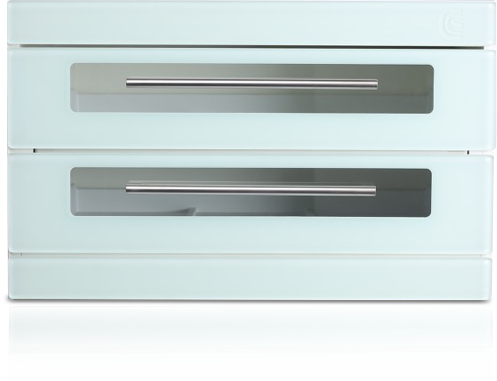

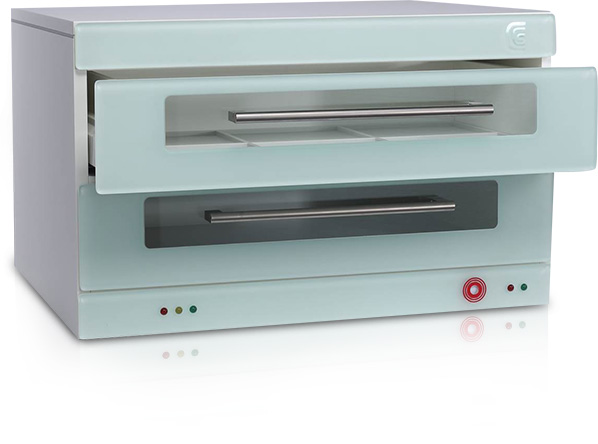

Medical RFID Cabinet M2/2-K
MATERIAL
- Corpus thermoplastic
- transparent
- wipe desinfectable
- 632 x 606 (Maximum) x 510 mm
- 40% weight reduction
AVAILABLE FORMATS
- M2/2-K Active and Passive
- ISO sized
- Capacity up to 500 medical devices
Flexible and configurable drawers for organizer boxes. Internal drawer height from 12 up to 24 (Maximum) cm.
One M2/2-K Active can be combined with up to 2 M2/2-K Passive Cabinets. Passive Cabinets need one Active to operate.
TECHNICAL COMPONENTS
- Industrial-PC with CrossTalk agent preinstalled
- ISO 18000-3 Mode 3 MARS HF RFID Reader 13,56 MHz
- AT – 3D – MUX HF RFID Antenna
- RFID access control
- Electromagnetic lock with photoelectric guard
FUNCTIONALITY
- Secure reading of up to 500 HF RFID-Tags in 3D within 5 sec.
- Automatic stocktake after closing of drawers within a freely set time interval
- Access control through RFID transponder/keyfob
- www data transfer from cabinet to SAP B1 CLOUD Server
- Operating status signalled through LEDs
